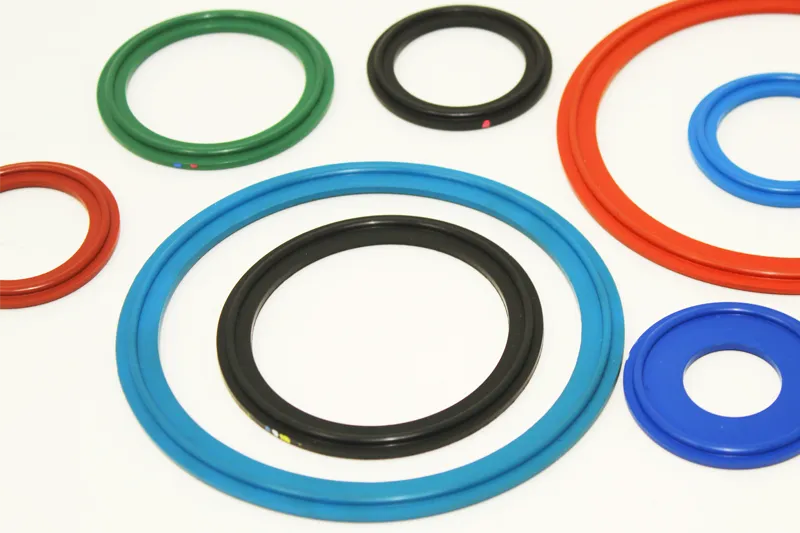

Tri Clamp style sanitory gaskets
Clamp connection gasket for sanitary pipe lines. Typical industries are Dairy, Beverage, Pharmaceutical, Biotech, and Food.

Standard Tri Clamp Style Sanitary Gaskets

Contaminant Detectable

CONTAMINANT DETECTABLE are also available in NBR, EPDM, FKM and Silicone elastomers and in various colors.

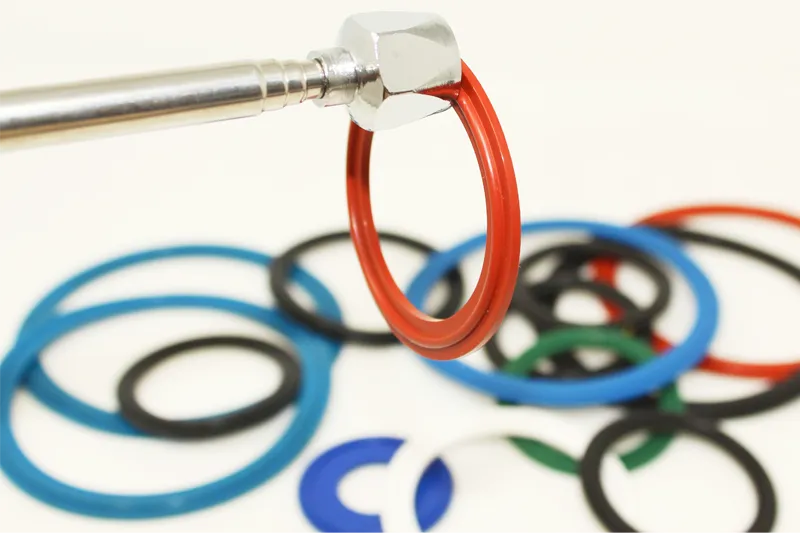

The contaminant detectable compounds have the highest detectability in the market. Contaminant particle size as small as a 3mm (0.109 in) or smaller can be detectable in conductive food products.

FDA CFR 21 Section 177.2600 compliant

Tri Clover Sanitary Gasket Compounds

E100 EPDM 70 Black
E101 EPDM 70 Blue
E200 EPDM 70 Black USP Class V1

N102 NBR 70 White
N103 NBR 70 Blue
N104 NBR 70 Yellow
N105 NBR 70 Green
N106 NBR 70 Red
N108 NBR 70 Black 3A

V100 FKM 75 Black
V106 FKM 75 Green
V117 FKM 75 Red
V118 FKM 75 Blue
V119 FKM 75 Brown 3A

S100 Silicone 70 Red
S101 Silicone 70 Blue
S102 Silicone 70 White
S110 Silicone 70 Translucent
S200 Silicone 70 Translucent USP Class V1
S201 Silicone 70 Clear USP Class V1

FFKM 100 FFKM 75 General Purpose Black
FFKM 150 FFKM 75 FDA Black
FFKM 200 FFKM 75 White USP Class V1

P100 PTFE White
P101 PTFE Blue

Contaminant Detectable Compounds

CD100 NBR 70 Black Contaminant Detectable
CD101 NBR 70 Red Contaminant Detectable
CD102 NBR 70 Blue Contaminant Detectable
CD103 NBR 70 White Contaminant Detectable
CD104 NBR 70 Yellow Contaminant Detectable
CD105 NBR 70 Green Contaminant Detectable
CD106 NBR 70 Purple Contaminant Detectable

CD200 FKM 75 Black Contaminant Detectable
CD201 FKM 75 Blue Contaminant Detectable
CD202 FKM 75 Red Contaminant Detectable
CD203 FKM 75 Green Contaminant Detectable
CD204 FKM 75 Purple Contaminant Detectable

CD300 EPDM 70 Black Contaminant Detectable
CD301 EPDM 70 Blue Contaminant Detectable

CD400 Silicone 70 Red Contaminant Detectable
CD401 Silicone 70 Blue Contaminant Detectable
